SS MULTISTAGE BOOSTER Pumps

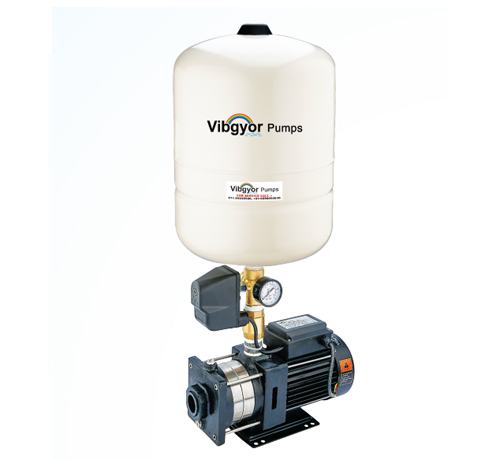

VP-45 / 24 LTR 4 Bathrooms*

Features

  • Auto On/Off
  • Diffuser, Impeller-AISI-304 SS
  • Flanges-CI-GJL-200
  • Motor Shaft - AISI-410 SS
  • Ball Bearings - SKF
  • Extremely Silent Running
  • With in built NRV
  • Liquid temperature - 85o C
  • Mech. Seal - NBR/Carbon/Ceramic
  • IP-44 / CI-F / 220V, 50Hz

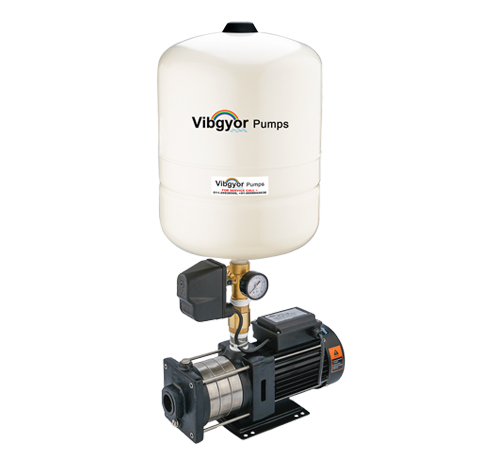

VP-70 / 24 LTR 7 Bathrooms*

Features

  • Auto On/Off
  • Diffuser, Impeller-AISI-304 SS
  • Flanges-CI-GJL-200
  • Motor Shaft - AISI-410 SS
  • Ball Bearings - SKF
  • Extremely Silent Running
  • With in built NRV
  • Liquid temperature - 85o C
  • Mech. Seal - NBR/Carbon/Ceramic
  • IP-44 / CI-F / 220V, 50Hz

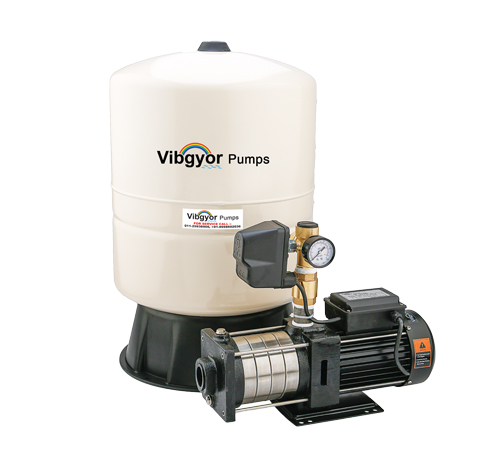

VP-80 / 24 LTR 8 Bathrooms*

Features

  • Auto On/Off
  • Diffuser, Impeller-AISI-304 SS
  • Flanges-CI-GJL-200
  • Motor Shaft - AISI-410 SS
  • Ball Bearings - SKF
  • Extremely Silent Running
  • With in built NRV
  • Liquid temperature - 85o C
  • Mech. Seal - NBR/Carbon/Ceramic
  • IP-44 / CI-F / 220V, 50Hz

VP-80 / 60 LTR 9 Bathrooms*

Features

  • Auto On/Off
  • Diffuser, Impeller-AISI-304 SS
  • Flanges-CI-GJL-200
  • Motor Shaft - AISI-410 SS
  • Ball Bearings - SKF
  • Extremely Silent Running
  • With in built NRV
  • Liquid temperature - 85o C
  • Mech. Seal - NBR/Carbon/Ceramic
  • IP-44 / CI-F / 220V, 50Hz

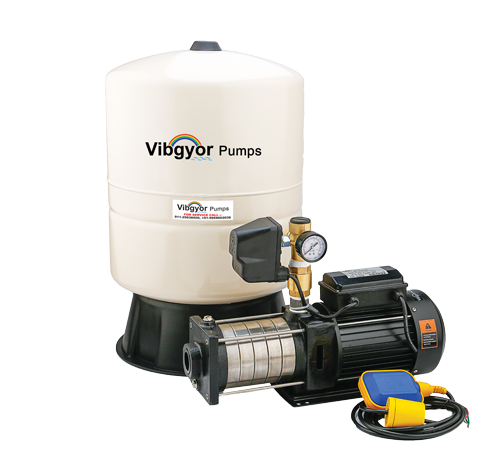

VP-100 / 60 LTR 10 Bathrooms*

Features

  • Auto On/Off
  • Diffuser, Impeller-AISI-304 SS
  • Flanges-CI-GJL-200
  • Motor Shaft - AISI-410 SS
  • Ball Bearings - SKF
  • Extremely Silent Running
  • With in built NRV
  • Liquid temperature - 85o C
  • Mech. Seal - NBR/Carbon/Ceramic
  • IP-44 / CI-F / 220V, 50Hz

All models are with Dry Run Protection Kit *

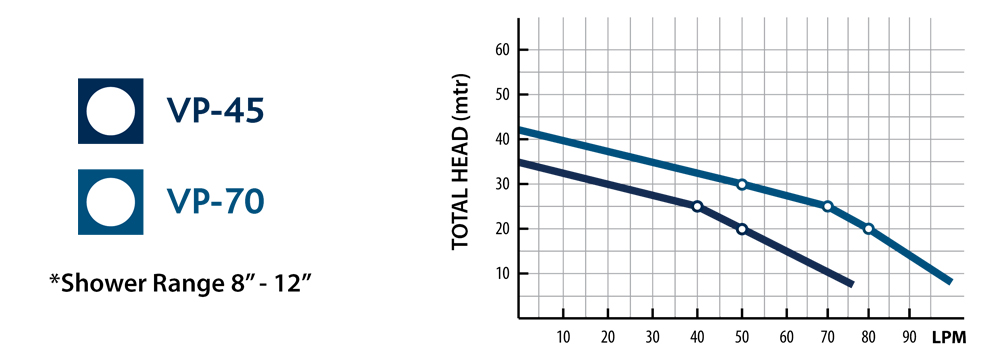

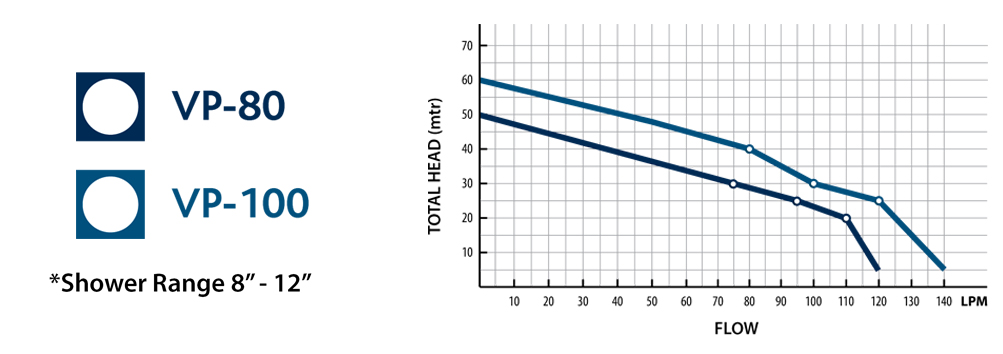

Model Head Flow Max. Power
VP-45 35mtr Max. 5000 LPH max. 0.8 HP/0.6 Kw
VP-70 42mtr Max. 6000 LPH max. 1 HP/0.75 Kw
VP-80 50mtr Max. 8500 LPH max. 1.2 HP/0.9 Kw
VP-100 60mtr Max. 9600 LPH max. 1.5 HP/1.1 Kw
